Resonant Raman intensity of the RBM and A1 G modes of single-walled carbon nanotubes - approximations



rrprbmmod0

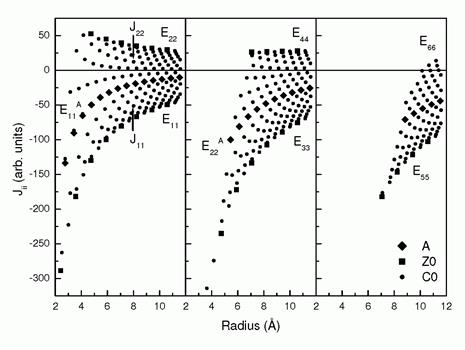

Fig. 1. Parameters Jii for the radial-breathing mode of Mod0 SWNTs.

rrprbmmod12

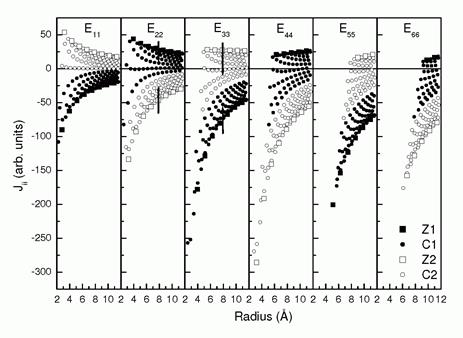

Fig. 2. Parameters Jii for the radial-breathing mode of Mod1 and Mod2 SWNTs.

rrpatomod0

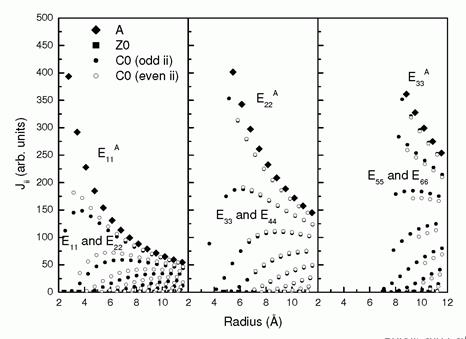

Fig. 3. Parameters Jii for the A1 TO G-band modes of Mod0 SWNTs.

rrpatomod12

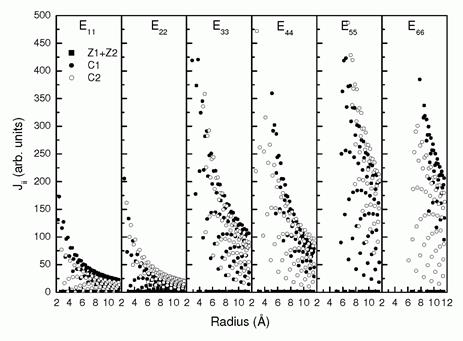

 Fig. 4. Parameters Jii for the A1 TO G-band modes of Mod1 and Mod2 SWNTs.

rrpalomod0

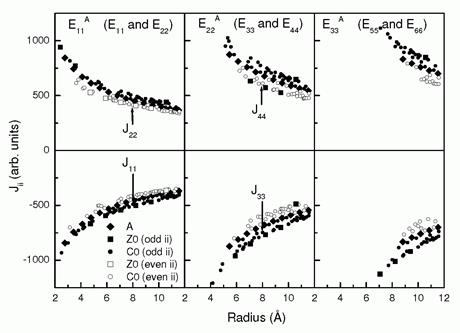

Fig. 5. Parameters Jii for the A1 LO G-band modes of Mod0 SWNTs.

rrpalomod12

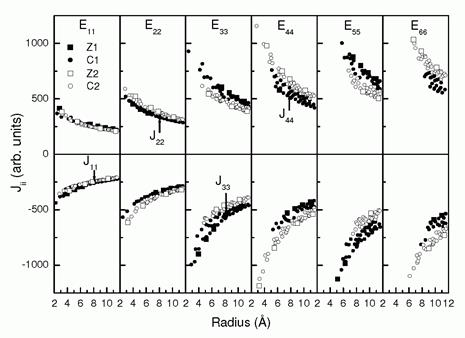

Fig. 6. Parameters Jii for the A1 LO G-band modes of Mod1 and Mod2 SWNTs.

The results of the calculation of  the parameters Jii for the RBM, and the totally symmetric TO and LO G-band modes for all SWNTs in the radius range from 2.5 Ǻ to 11.5 Ǻ for transition energies up to 3.5 eV are shown in Figs. 1-6 (Ref. [1]). A, Z, and C stand for armchair, zigzag, and chiral. The indices 0, 1, and 2 denote Mod0, Mod1, and Mod2 tubes.



References:



1. V. N. Popov and Ph. Lambin, Phys. Rev. B 73 (2006) 165425.
