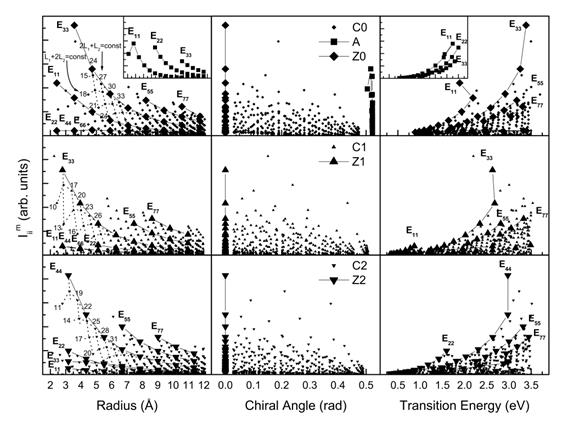

Fig. 1. Maximum Raman
intensity.
|
For the calculation of the
resonant Raman intensity of any nanotube, one can start from a model of the
electronic band structure of the nanotube[1,2]. Then, the resonance Raman profile can be calculated
from the quantum-mechanical expression derived in third-order perturbation
theory[3,4]. Two approximation schemes of different
complexity are usually applied for modelling the features of the resonance
Raman profiles (RRPs) of the radial-breathing mode (RBM) due to different
optical transitions. I. First of all, one assumes that the features
due to the different optical transitions are enough far away so that no
interference between them takes place. 1. Additionally, one can assume the matrix
element of the momentum and electron-phonon coupling as
wavevector-independent. The remaining summation over the wavevector can be
accomplished analytically. Then, the maximum intensity of each feature of a
given RRP can be presented as[3,4] , where is a weakly tube-dependent quantity. 2. Further simplification of the expression of the RRP can be achieved assuming that the p's and D's are not only wavevector-independent but are also tube-independent. In this case the maximum intensity is given by[3,4]
The results of the calculation of (or ) and for all 300 SWNTs
in the radius range from 2 Ǻ to 12 Ǻ for transition energies up to
3.5 eV are shown in Figs.
1 and 2 (Refs. [3,4]). References: 1. V. N. Popov, New J. Phys. 6 (2004) 1-17. 2. V. N. Popov and L. Henrard, Phys. Rev. B 70 (2004) 115407. 3. V. N. Popov, L. Henrard, and Ph. Lambin, Nano Letters 4 (2004) 1795-1799. 4. V. N. Popov, L. Henrard, and Ph. Lambin, Phys. Rev. B 72 (2005) 035436. |
Fig. 2. Maximum Raman
intensity (or which has qualitatively
the same behavior).
|
Valentin Popov
July 22, 2005
