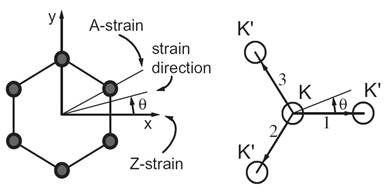

Fig.
1. Left: Atomic structure of graphene. Right: part of the Brillouin zone of
graphene with K and K’ special points; the circles are cross-sections
of the Dirac cones; θ is the
angle of the strain direction relative to the zigzag of carbon bonds (Z
direction); θ = 30°
is the direction of the armchair line of bonds (A direction). |
The Raman scattering in graphene
is always resonant because for all laser excitations in the visible range there
are pairs of valence and conduction states matching the laser photon energy.
The relevant states belong to the conduction and valence bands, crossing at
the Fermi energy and forming conic surfaces in space, so-called Dirac cones. The calculation of the Raman
spectrum of graphene is performed within a non-orthogonal tight-binding (NTB)
model applied to the electronic band structure [1,2], phonon dispersion [3],
electron-photon and electron-phonon matrix elements [4], electronic
broadening parameter [5], and the quantum-mechanical expression for the
intensity [6]. This approach was originally applied to single-walled carbon
nanotubes. Graphene has a single one-phonon
Raman band, called the G band. It originates from the Raman-active in-plane
optical phonon of symmetry E2g. The Raman shift does not
change with the laser excitation, while the intensity of the G band is an
increasing function of the laser excitation. The shift and intensity of the G
band do not change with the change of the angles of the incident and
scattered light [7]. This is no longer the case in the
case of uniaxially strained graphene. In order to study the polarization
dependence of the G band, let References: 1. V. N. Popov, New J. Phys. 6 (2004) 17. 2. V. N. Popov and L. Henrard,
Phys. Rev. B 70 (2004) 115407. 3. V. N. Popov and Ph. Lambin,
Phys. Rev. B 73 (2006) 085407. 4. V. N. Popov, L. Henrard, and
Ph. Lambin, Phys. Rev. B 72 (2005)
035436. 5. V. N. Popov and Ph. Lambin, Phys. Rev. B 74 (2006) 075415. 6. V. N. Popov and Ph. Lambin,
Phys. Rev. B 73 (2006) 165425. 7. V. N. Popov, L. Henrard, and
Ph. Lambin, Carbon 54 (2013) 86. |

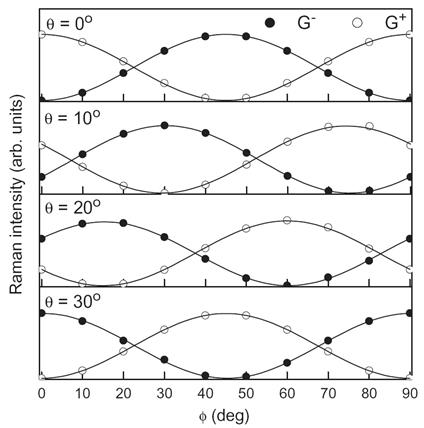

Fig.
2. The calculated Raman intensity of the G−and
G+ components of the G band (symbols) vs light polarization angle ϕ for parallel light
polarization, for several strain directions θ. The lines are best fits of the theoretical equations (see
text). |
Valentin Popov
September 21, 2014
