The α-, β-, and γ-graphynes
have hexagonal symmetry as graphene itself. The three graphynes can be
derived from graphene by insertion of an acetylenic group into every carbon
bond, two-thirds of the carbon bonds and one-third of the carbon bonds, resp.
(Fig. 1). The Brillouin zone of these graphynes is a hexagon (Fig. 2b). The electronic band structure of α-,
β-, and γ-graphynes, derived within the non-orthogonal
tight-binding (NTB) model with model parameters taken over from an ab-initio
study (Porezag) [1,2] is shown in Fig. 2 [3]. The main characteristics of the band
structure of the three graphynes are as follows: - α-graphyne has similar band structure
as graphene with crossing bands at the Fermi energy at the K point of the
Brillouin zone. The splitting of the bands at the M point is in excellent
agreement with the previously reported value. - β-graphyne has electronic structure
that shows deviation from that of graphene as the crossing of the bands at
the Fermi energy takes place along the ΓM direction. Additionally, a
tiny gap opens along the ΓK direction. The agreement with the previously
reported band energies is very good. - γ-graphyne differs from both
α-graphyne and β-graphyne as there is no band crossing at the Fermi
energy. The comparison with reported DFT data shows disagreement for the band
gaps. It should be noted that DFT systematically underestimates the band gaps
and further corrections are needed for the fair prediction of the electronic
structure. In summary, the NTB model yields
semi-quantitatively correct prediction of the band structure of the graphynes
in the vicinity of the Fermi energy. The NTB model is further used for the calculation
of the phonon dispersion and the first-order Raman spectra of the studied
graphynes [3]. References: 1. V. N. Popov, New J. Phys. 6 (2004) 1-17. 2. V. N. Popov and L. Henrard, Phys. Rev. B 70 (2004) 115407. 3. V. N. Popov and Ph. Lambin, Phys. Rev. B 88 (2013)
075427. |

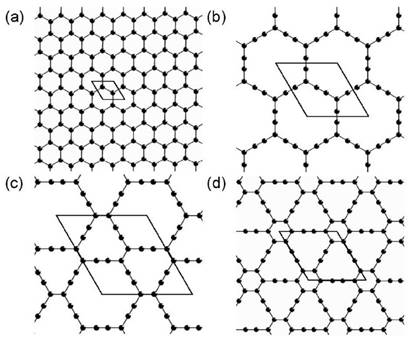

Fig. 1. Schematic of the atomic
structure of (a) graphene, (b) α-graphyne, (c) β-graphyne, and (d)
γ-graphyne. The unit cells of the structures are shown by rhombs.
|
|

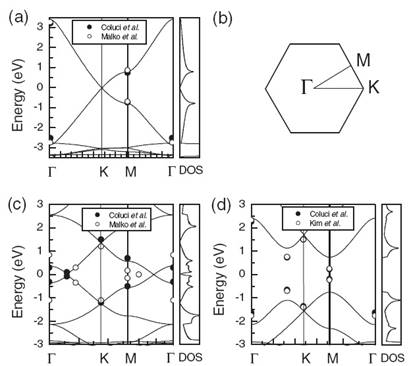

Fig. 2. Electronic band
structure of (a) α-graphyne, (c) β-graphyne, and (d)
γ-graphyne, calculated along the high-symmetry directions in the
Brillouin zone (b). The available reported values of the bands’ energies are
shown by solid and empty symbols.
|
