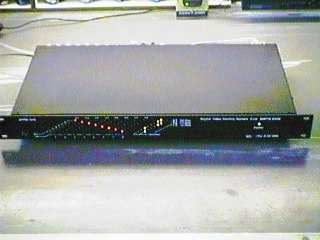

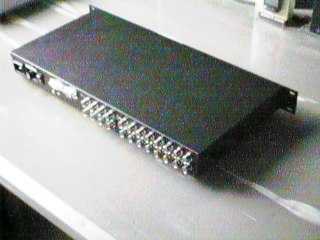

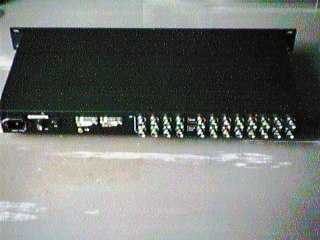

Digital Video Routing System DVRS-8x8, SDI, SMPTE 259M

**Video Specifications**
*Serial Inputs*
Sampling	4:2:2 or 4fsc, 10 bit
Line/field rate	525/60 and 625/50
Bit-serial	To ANSI/SMPTE 259M and EBU Tech.3267-E
Data Rate	143, 177, 270 & 360 Mb/s
Cable equalization	Automatic up to 300m (Belden 8281)
Impedance	75 Ohm internally terminated
Return loss	>15dB, 5-270MHz
Number of inputs	8
Level	800 mV_p-p nominal
*Serial Data Output*
Bit-serial	To ANSI/SMPTE 259M and EBU Tech.3267-E
Data Rate	143, 177, 270 & 360 Mb/s
Cable drive	Up to 300m (Belden 8281)
Impedance	75 Ohm
Return loss	>15dB, 5-270MHz
Level	800 mV_p-p nominal (terminated)
Rise and fall times	650ps
Data jitter	+/- 200ps
Number of outputs	8
*Serial Clock Output*
Impedance	75 Ohm
Number of outputs	8
Clock jitter	130 ps @ 270Mb/s
Duty cycle	44/56
Rise and fall times	230ps
Level	800 mV_p-p nominal (unloaded)
*Electrical*
Power	198-230 VAC, 50Hz, 24 VA

**DVRS-8x8 Control System**
*Local control*
Display	8 rows x 8 LED’s matrix configuration 8 LED’s for Input Carrier Detect (CD) 8 x 2 LED’s for Output Data Rate
Output Data Rate	LED1 LED2 Data Rate, Mb/s On On 360 On Off 270 Off On 177 Off Off 143
Configuration	Indication only

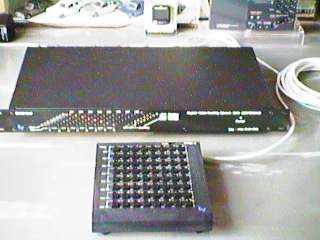

Keyboard control	PVRS-2 device, connected to the serial port of the first device in the stack with the power plug inserted
*PC control*
Type	GUI-application, running under Windows95, 98
Configuration	Full control, stackable
Interface	Serial RS-232, 9600 bps

**Mechanical & Climatic**
Height	44 mm (1RU, 1.75 inches)
Width	483 mm (19.00 inches)
Depth	235 mm (9.00 inches)
Weight	3.5 Kg
Temperature	+5 deg.C to +35 deg.C
Humidity	96% maximum

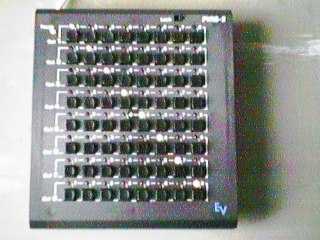

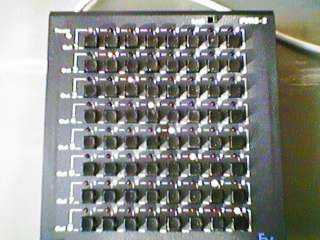

PVRS-2 Keyboard

The PVRS-2 8x8 keyboard with Lock-control is used to configure the DVRS-8x8 routing system. It can also be combined with any 8x8 Crosspoint router, which supports the xVRS-command set.
