Multiple Destination Audio/Video Routing Switcher 8x16  AVRS 8x16

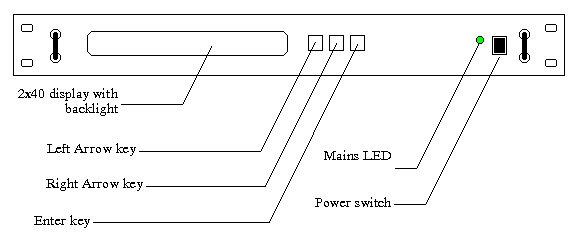

Front Panel (Front view of the 1RU device chassis)

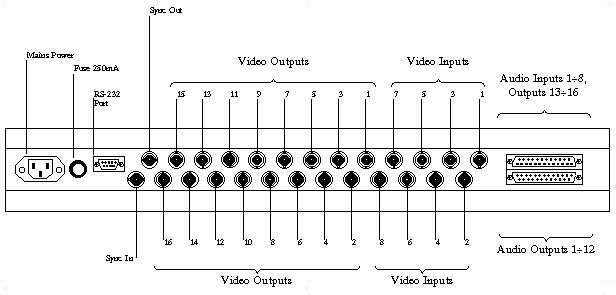

Back Panel (Back view of the device chassis with connectors)

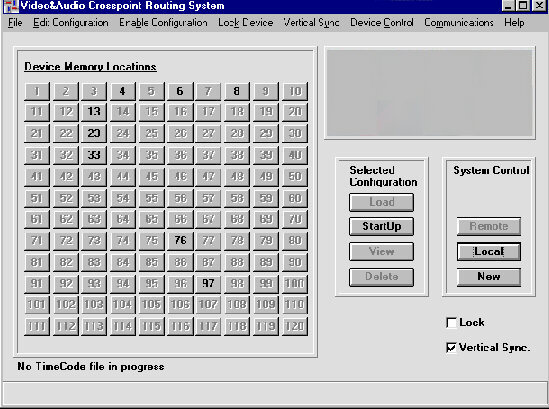

Main Window of the PC User Interface Program (The device controls and the memory locations with stored configurations are visible on this window.)

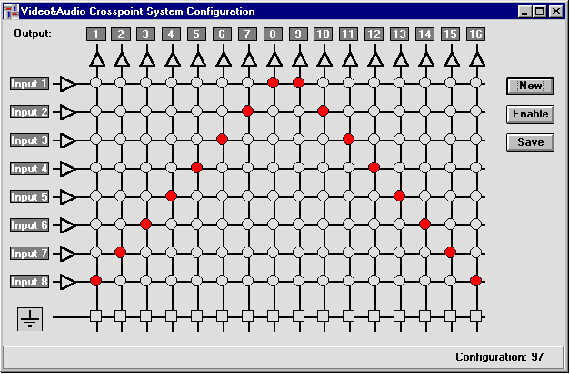

Device Configuration Window of the PC User Interface Program (Through this window every individual connection of the internal matrix can be set up.)

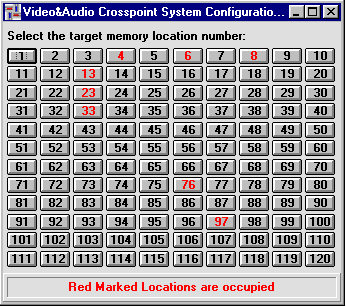

Memory Locations Window of the Interface Program (Every new configuration can be saved with an unique number. The window allows you to select from free memory locations.)

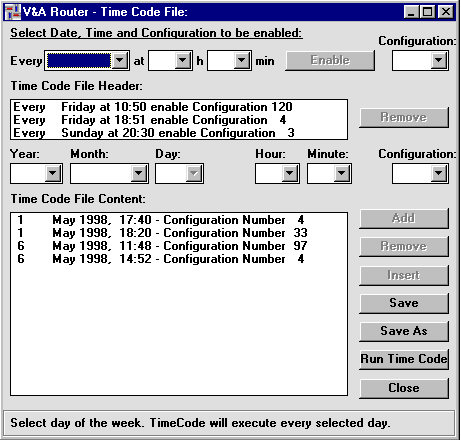

Time Code Entry Window of the Interface Program (Through this window the time code file is edited. So the device can be preprogrammed to complete switching operations at specified moments of time.)
